Wi-Fi роутер B-OptiX BO-RT622-G31-G2, 802.11a/b/g/n/ac/ax, 4xGE RJ45

Gigabit AX3000-class Router with Wi-Fi 6 Support — from B-OptiX

Hardware Platform

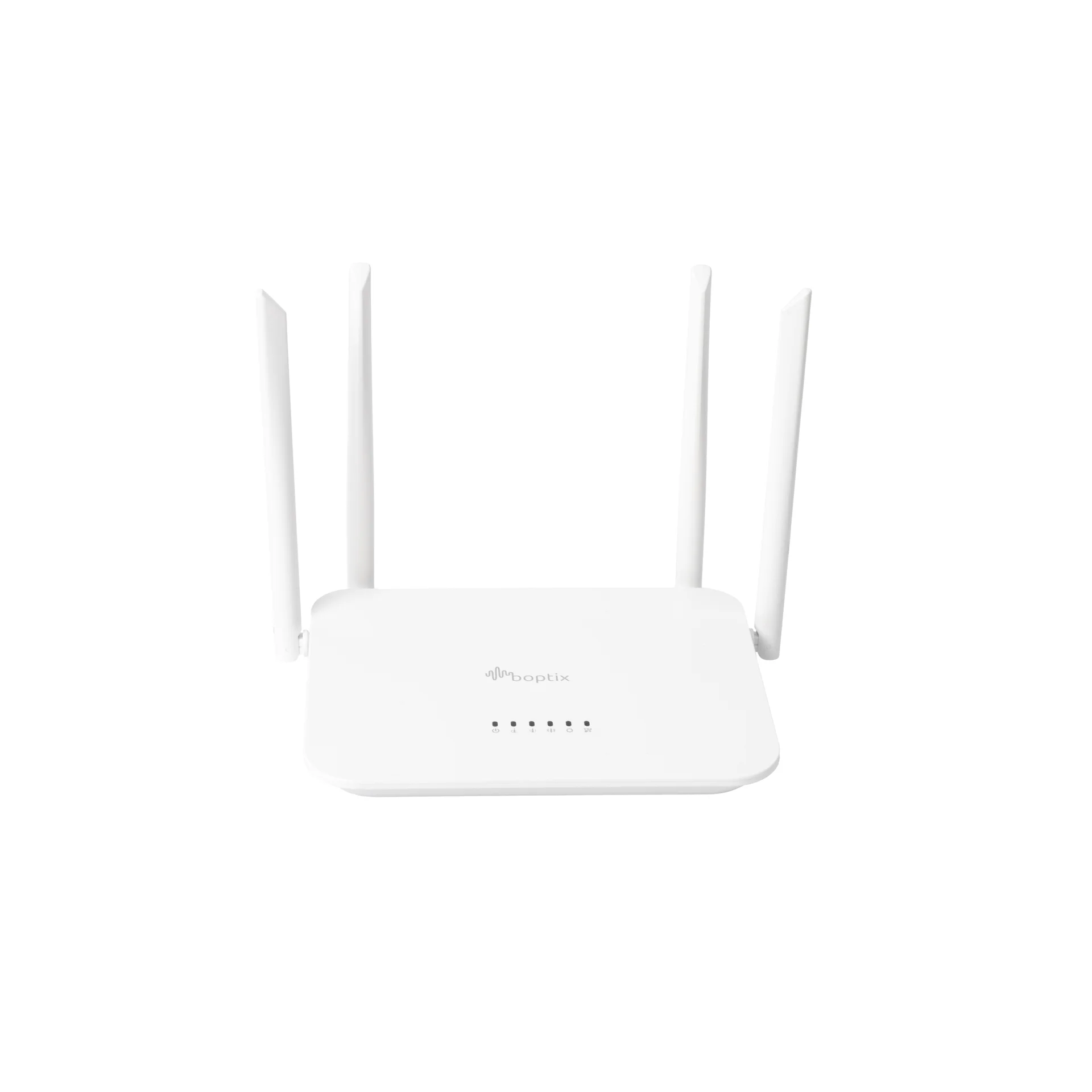

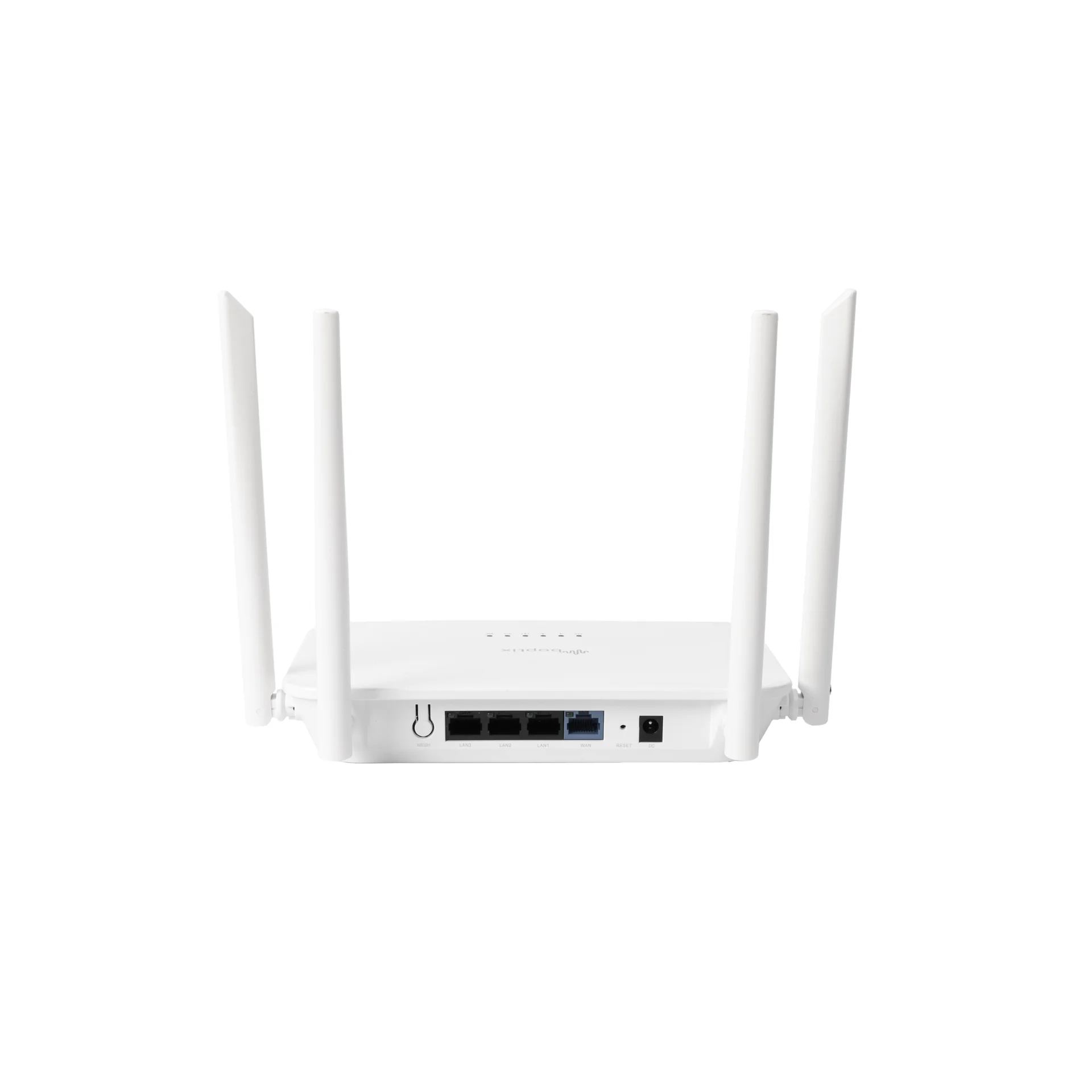

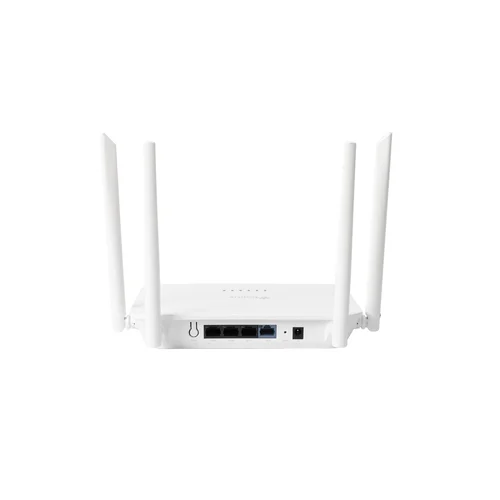

The BO-RT622-G31-G2 is equipped with four external 5 dBi antennas. The 1 WAN and 3 LAN ports support speeds up to 1 Gbps.

The modern hardware platform delivers high performance for both wired and wireless segments:

• WAN and LAN ports support speeds up to 1 Gbps

• 2.4 GHz Wi-Fi provides channel speeds up to 574 Mbps

• 5 GHz Wi-Fi provides channel speeds up to 2402 Mbps

Software

The BO-RT622-G31-G2 comes with EasyWRT software.

EasyWRT capabilities:

• Remote CPE management for ISPs via the TR-069 (CWMP) protocol, without hidden services; new branches are added to simplify operator interaction with the device fleet

• Diagnostic tools for quick troubleshooting

• Ability to configure seamless roaming in a Mesh network using 802.11k/r/v protocols

• Firmware recovery via the web interface

Advanced Wireless Features

New features have been added and existing technologies improved:

• OFDMA — a key Wi-Fi 6 enhancement increasing potential throughput and reducing latency for client devices

• BSS Coloring — a method that separates access points and clients using the same channel, improving coexistence in dense environments and reducing collisions

• TWT (Target Wake Time) — optimizes the power consumption of client devices by coordinating how often a device wakes up to transmit data

• Mesh — creating a single seamless network from multiple SNR and B-OptiX routers using 802.11k/r/v roaming protocols

• BandSteering — enables range management, allowing easy duplication of SSID and security settings from the 2.4 GHz interface to the 5 GHz interface

• Support for Multicast, IGMP Snooping, Multicast-to-Unicast, and multicast/broadcast isolation ensures stable quality of IP television services, including for Wi-Fi clients (though the latter is generally not recommended for IPTV)

• IPv6 support, including: Native Dual Stack over IPoE/PPPoE with DHCP+RA, 6to4 mode, radvd, and dhcp6s services

For Internet Service Providers

SNR offers ISPs a flexible set of customization options for SNR-CPE wireless routers: housing modification, packaging changes, and firmware customization tailored to the specific network. Contact your account manager for more details.

For independent firmware customization, the EasyCustom tool allows reading, writing, and modifying configuration files stored in the router’s memory. The tool enables manual EasyWRT configuration changes via scripts without rebuilding the firmware, and saves modified parameters to permanent memory by uploading an archive directly to the router.

When uploading EasyCustom, system files will be replaced with those from the archive. Available in EasyWRT versions 2.4.0 and above. More details can be found in our knowledge base.

Diagnostic tools and remote CWMP access allow rapid issue resolution and help prevent network problems.
