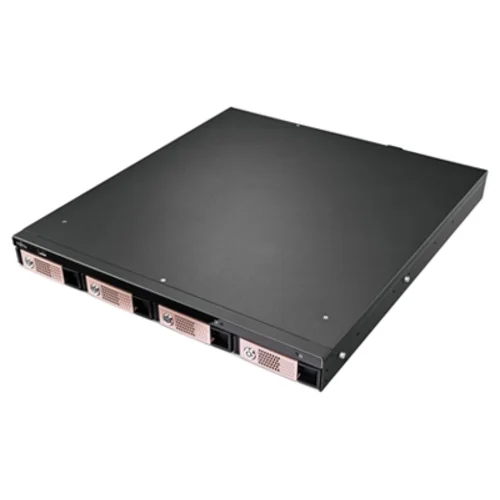

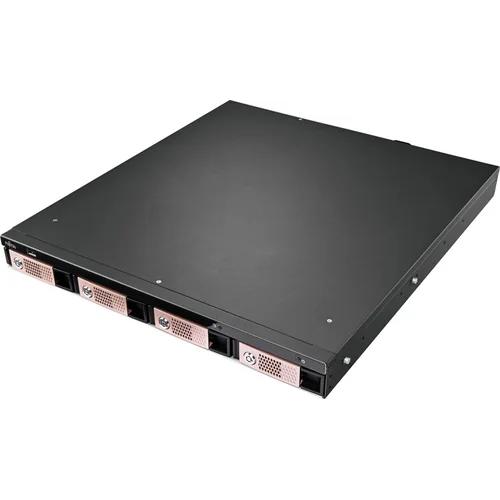

В состав входит: система хранения данных NAS CELVIN QR802 (2 блока питания), салазки для жестких дисков (без дисков).
Надежность, производительность и функционал больших систем на low-cost уровне.
Получить техническую консультацию, составить полную и правильную спецификацию и определить стоимость оборудования Вы можете пообщавшись с менеджером. Звоните! Мы с удовольствием ответим на все вопросы! Возможны гибкие условия рассрочки и факторинга!
NAS-сервер Fujitsu CELVIN® QR802 – это идеальное решение для малых систем видеонаблюдения, совместного доступа к файлам, резервного копирования и интеграции сети хранения данных для централизованного управления данными по умеренной цене для предприятий малого и среднего бизнеса. Он имеет два источника питания для более надежной работы с возможностью хранения до 16 ТБ данных и разработан для монтажа в стойку рядом с другим сетевым оборудованием компании.
- Celvin NAS серия на сайте Fujitsu
- Обзор решения (http://data.nag.ru/Fujitsu/Documentation/%ce%e1%e7%ee%f0%20%f0%e5%f8%e5%ed%e8%ff_NAS%20QR802.pdf)
- QR802 datasheet (https://data.nag.ru/Fujitsu/Datasheet/QR802%20datasheet.pdf)
- Перечень совместимых устройств (http://data.nag.ru/Fujitsu/Documentation/%cf%e5%f0%e5%f7%e5%ed%fc%20%f1%ee%e2%ec%e5%f1%f2%e8%ec%fb%f5%20%f3%f1%f2%f0%ee%e9%f1%f2%e2_NAS%20QR802.pdf)
Основные особенности:
- Hot-swap диски
- Поддержка интерфейса SATAI/II/III
- RAID 0/1/5/5+HS/10/6, JBOD, single disk
- Емкость до 16ТБ
- Поддержка VMWare®/Citrix®/HyperV™
- iSCSI storage for cluster virtualization
- Encrypted remote replication for archiving
- Поддержка LAG (NIC teaming)
- Поддержка USB WiFi адаптера
- Зарезервированный блок питания
- Различные механизмы резервирования данных с серверов и виртуальных машин
- Резервирование данных в облако или на внешний носитель
- Поддержка стороннего ПО
- Полноценный Web-сервер (PHP, MySQL, SQLite, phpMyAdmin, редактируемый php.ini)
- FTP-сервер
- VPN-сервер (OpenVPN)
- Встроенный антивирус
- Списки доступа
- Авторизация (PLAIN, Windows AD, LDAP, 802.1x, Radius)
- Защищенный доступ (HTTPS, FTP with SSL/TLS(explicit),SSH/SFTP, RSync over SSH)
- Видеорегистратор (до 42 каналов, автопоиск IP-камер и конфигурация)
- Медиа-сервер (iTunes, UPnP, Twonky)
- Torrent клиент (до 500 одновременных закачек, RSS, DHT, расписание)
Технические характеристики:
| Technical specifications
|
Firmware based on 3.7.4
Processor: Intel® Atom™ D270x 2,1GHz Memory: 1 GB DDRIII RAM 512 MB Flash on DOM FAN:2 x quiet cooling fan (4cm) Intel® 82574L NIC x2 Gigabit LAN Formfactor: 1U rackmount |
|
Hard disk capacity |
Up to 4 x 2.5-inch or 3.5-inch SATA I/II/SATA 6Gb/s HDD or SSD up to 12TB raw capacity, consult HDD compatibility list
HDD drives hot swappable |
|
Hard disk notes |
24 x 7 NAS Edition Drives
|
|
Networking |
TCP/IP (IPv4 /IPv6 dual stack), multi IP setting,LACP,
Port trunking /NIC teaming: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive, Transmit Load Balancing), Balance-alb (Adaptive Load Balancing) DHCP client, DHCP server including PXE boot CIFS/SMB, AFP/Netatalk3.2, NFS v3, HTTP, HTTPS, FTP,SFTP(admin), DDNS, NTP, Telnet, SSH, iSCSI, SNMP,WebDAV,SMSC Dual Gigabit w/ Jumbo Frame, Bonjour iSCSI initiator for virtual disks (max 8 disks); stack chaining master Virtual disk support for EXT3/ EXT4/ NTFS/ FAT32/ HFS+ Support for VMware VSphere 4 and 5 via NFS and iSCSI Windows Server 2008 support (Hyper-V & failover clustering) Citrix XenServer (6.0) iSCSI target (with multi-LUNs per target) iSCSI LUN online expansion LUN mapping / LUN masking Up to 256 LUNs SCSI Primary Commands -3 (SPC-3) support / persistent reservation MC/S (multiple TCP connections / session) support to reach iSCSI target MPIO (multipath input output) for load balancing and failover VLAN 802.1Q USB WiFi-Adapter support IEEE 802.11b/g/n WEP, WPA-personal (AES/TKIP), WPA2-personal (AES) Connection to wireless network or Ad Hoc network |
|
Backup Management |
Client backup software
Time machine backup (OS X Lion support) 3rd party backup software support Encrypted block-level remote replication (instant, scheduled backup management); synchronization mode/Rsync Real-time remote replication (RTRR protocol) for real-time backup of server & client, 3 sync modes, filter, policy definition, SSL protected Backup to Cloud Backup to (encryptable) USB/eSATA storage devices LUN backup and restore LUN point-in-time snapshot (1x)
|
|
File System Management |
Network share management ’(max. 512 shares)
Share folder level ACL support Unicode support Journaling file system Web File Manager File management by Web-browser File and folder search Direct file viewing via Google Docs support (pdf,tif/tiff,ppt,doc,xls,pptx,docx,xlsx,svg,odt) Create and send download links for public file sharing (time expiration, password protected) |
|
Disk Management |
Disk usage status management; HDD S.M.A.R.T.; Bad blocks scan
RAID 0/1/5/5+HS/10/6, JBOD, single disk Online RAID capacity expansion; online RAID-level migration RAID recovery, Bitmap support ISO mounting (max 256) via Web File Manager |
|
User Management |
User quota management
Windows Active Directory support, max. 10k users LDAP directory service supports Open LDAP, max. 10k domain users User account management (max. 4096users) User group management (max. 512 groups) Shared folders (max. 512) Concurrent connections (max. 256) Support batch creating users User Import/ Export for Multiple CELVIN NAS Deployment Subfolder Permission (File/Directory ACL) Microsoft Networking (Samba) Host Access Control (Domain/IP) |
|
Radius Server |
Support for 802.1x security authentication: PAP , EAP-TLS/PAP, EAP-TTLS/PAP (WPA-Enterprise, WPA2-Enterprise)
max. 10 RADIUS clients, max. 4096 users VPN Server OpenVPN up to 256bit SSL/TLS, PPTP up to 128bit encryption |
|
System Tools |
E-mail alert (SMTP authentication); SMS alert notification
Disk usage alert HDD standby mode Automatic power on after power loss Schedule power on/ off (15 settings max) System firmware upgrade Wake-on-LAN Smart fan setting Back up, restore, reset system settings Configurable management port Remote login by Telnet connection USB, SNMP(v2, v3) UPS support Network recycle bin |
|
Event Logs |
Complete system logs (file level): system events management, connection logs, current connection of on-line users
Centralized monitoring / syslog server (TCP / UDP) Manually and advanced log filtering via wizzard |
|
Multilingual (Online) Support |
Primary languages: English, German, Czech, Danish, Spanish, French, Italian, Norwegian, Polish, Russian, Finish, Swedish, Dutch, Turkish, further languages available via GUI |
|
FTP Server |
FTP remote access (max. 256 concurrent connections)
FTP with SSL/ TLS (explicit) mode FTP bandwidth control and connection control Passive FTP port range control FXP support TFTP server (PXE boot) SFTP (admin only) |
|
Printer Server |
USB printer network sharing (Windows / Mac)
Internet printing protocol, printer management, Apple Bonjour printing |
|
Web Server |
Built-in editable php.ini, SQLite and MySQL
Web-based management via phpMyAdmin Max. 32 virtual hosts Browser support: Internet Explorer 7+ Firefox 3+ Safari 3+ Google Chrome |
|
MySQL Server |
MySQL database server |
|
Security |
Network access protection with autoblocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Policy based automatic IP blocking and IP filter Encrypted access (HTTPS, FTP with SSL/TLS(explicit),SSH/SFTP, RSync over SSH, CIFS host access control for shared folders ClamAV antivirus protection FIPS 140-2 validated AES 256-bit volume based data encryption Importable SSL certificates OpenVPN up to 256bit SSL/TLS, PPTP up to 128bit encryption Radius Server Instant alert via E-mail, SMS, Instant Messaging, LCD |
|
Surveillance Station |
1 channel free, up to 12 channels possible (fee-based)
IP camera finder software and configuration |
|
Media Server |
UPnP Media Server
Twonky Media iTunes server Supports UPnP Media player Game consoles Xbox360, PS3, PSP DMP/DMA Multimedia station features Realtime & background photo transcoding |
|
Download Station |
BitTorrent (FTP/ HTTP scheduled download)
Support of TCP/ UDP tracker protocol, distributed hash table/DHT Up to 500 BT download tasks Download configuration / download status list RSS download manager, subscription to RSS feeds, RSS download Multiple URLs in one task |
| Interfaces | |
| USB 2.0 total
USB 3.0 total eSATA |
Front side: x1; rear side: x4
Rear side: x2 2 x (rear / SATA) |
|
Video formats |
(Media Server): wmv, asf, vdr, avi, xvid, divx, flv, mpg, mpe, mts, m2ts, m2t, mpeg, spts, m2p, m2v, mp2t, mp2p,
mpg2, dvr-ms |
|
Subtitle formats |
(Media Server): m3u, m3u8, wpl, pls |
|
Music formats |
(Media Server): mp3, mp4, m4a, m4b, 3gp, apl, ac3, m1v, m4v, mov, aac, amr, awb, wav, pcm, lpcm, mp1, mp2, aif, aiff, aifc, snd, wma, ogg, flac; Internet Radio (Media Server): vTuner, Shoutcast |
|
Picture formats |
Media Server): jpg, jpe, jpeg, tiff, tif, gif, png, bmp |
|
Supported file system |
EXT4 (internal/external HDD)
EXT3 (internal/external HDD) NTFS (external HDD) FAT32 (external HDD) HFS+ (externel HDD) |
|
Power consumption |
ErP mode: 7,9W WoL mode: 9,6 W Sleep mode: 37W Operation mode:52 W all with two active power supplies installed |
|
Power supply input |
Internal swappable power supply module 2x250W 50-60Hz Input: 100-240V AC |
|
Compliance link |
https://sp.ts.fujitsu.com/sites/certificates/ |
|
Dimensions (WxDxH) |
439 x 499 x 44 mm |
|
Weight |
Net weight: 7.6 kg, Gross weight: 9.6 kg |
|
Operating ambient temperature |
0 - 40 °C |
|
Software support (Operating system) |
Windows® XP
Microsoft® Windows ® 7 (32 bit and 64 bit) Windows Vista® Mac OS X Linux UNIX Windows® Server 2008 R2 Windows® Server 2003 |
| Package content
|
CELVIN NAS Server QR802
2x Power Cord EU Plug CD 2x LAN cable 2x Key for tray lock 4x Trays 2x rail mounting kit Quick Start Guide Service flyer |
- S26341-F103-L211 Single Tray with 1 TB NAS Hard Disk Drive
- S26341-F103-L212 Single Tray with 2 TB NAS Hard Disk Drive
- S26341-F103-L213 Single Tray with 3 TB NAS Hard Disk Drive
- S26341-F103-L890 w/o Hard Disk Drive, 4 trays included
- S26341-F103-L891 4 x 1 TB NAS Hard Disk Drives
- S26341-F103-L892 4 x 2 TB NAS Hard Disk Drives
- S26341-F103-L893 4 x 2 TB Business Critical Hard Disk Drives, on request only
- S26341-F103-L894 4 x 3 TB NAS Hard Disk Drives
- S26341-F103-L895 4 x 3 TB Business Critical Hard Disk Drives, on request only
- VFY:QR802XX000E1 w/o Hard Disk Drive, 4 trays included EU
| Характеристики | |
|---|---|
| Количество контроллеров управления | 1 |
| Протокол подключения | SAS |
| Скорость подключения, Gb/s | 6 |
| Исполнение корпуса СХД | 1U |
| Форм-фактор отсеков под жесткие диски | LFF 3,5" |
| Количество отсеков под жесткие диски | 4 |
