Cisco SX10 Quick Set Specifications
Software compatibility
●Cisco TelePresence Software Version TC 7.1 or later
●Cisco Collaboration Endpoint Software Version 8.0 or later

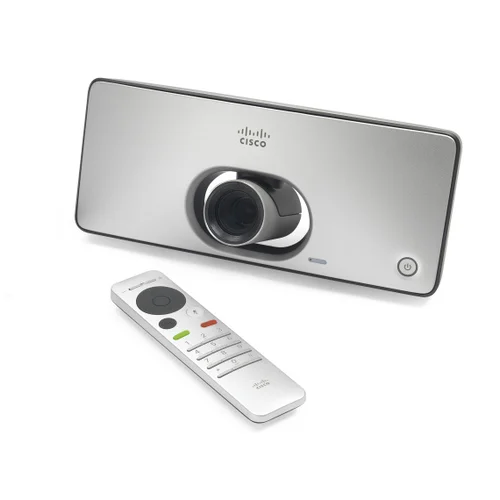

Product delivered with
●SX10 Codec with integrated HD camera and microphone
●Wall mount
●TRC6 remote control
●Network and HDMI cables
●The current model, CTS-SX10N-K9, includes a dedicated audio transmitter in the base unit to enable seamless performance when using Cisco Intelligent Proximity. The previous model, CTS-SX10-K9, relies on external speakers to transmit the Proximity signal
Integrated HD camera
●5x zoom (2.65 optical and digital zoom)
●+5°/-25° tilt, +/-30° pan
●51.5° vertical field of view
●83° horizontal field of view
●F-value from 2.1
●1920 x 1080 pixels progressive @ 30 fps
●Automatic or manual focus, brightness, and white balance
●Far-end camera control
●Automatic flipping of picture when upside down
User interface
●TRC6 remote control and on-screen Graphical User Interface
●Optional Cisco Touch 10 control unit
Language support
English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish; depends on software version
System management
●Total management using embedded Telnet, SSH, XML, and SOAP
●Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS
●Remote control and on-screen menu system
Directory services
●Support for local directories (My Contacts)
●Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS])
●Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
●Call History with received, placed, and missed calls with date and time
Power
●PoE enabled
●Auto-sensing power supply
●100 - 240 VAC, 50/60 Hz
●Maximum 12 watts in normal operation
Operating temperature and humidity
●0° to 40°C (32° to 95°F) at Relative Humidity 10% - 90% (noncondensing)
Storage and transport temperature
●-20° to 60°C (60° to 140°F) at Relative Humidity 10% - 90% (noncondensing)
SX10 codec dimensions
●Width: 10.8 inches (27.5 cm)
●Height: 4.6 inches (11.7 cm)
●Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera)
●Weight: 2.0 pounds (0.9 kg)
Approvals and compliance
●Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
●Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class B - Standard EN 55024 - Standard EN 61000-3-2/-3-3
●Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
●Complies with FCC CFR 47 Part 15 Class A
Product Capabilities
Bandwidth
●Up to 3 Mbps
Minimum bandwidth for resolution/frame rate
●720p30 from 768 kbps
●1080p30 from 1472 kbps
Firewall traversal
●Cisco TelePresence Expressway Technology
Video standards
●H.263, H.263+, and H.264
Video inputs
Two video inputs (HDMI or VGA selectable through user interface)
Supported Formats:
●640x480 (VGA)
●720x480
●704x576 (4CIF)
●800x600 (SVGA)
●848x480
●1024x768 (XGA)
●1152x864 (XGA+)
●1280x720 (720p)
●1280x768 (WXGA)
●1920 x 1080@30 (HD1080p)
Extended Display Identification Data (EDID)
Video output
HDMI Output Supported Formats:
●1920 x 1080@60 fps (1080p60)
VESA Monitor Power Management
Extended Display Identification Data (EDID)
Live video resolutions
Live Video Resolutions (Encode and Decode):
●176 x 144@30 (QCIF) (Decode only)
●352 x 288@30 (CIF)
●512 x 288@30 (w288p)
●576 x 448@30 (448p)
●768 x 448@30 (w448p)
●704 x 576@30 (4CIF)
●1024 x 576@30 (w576p)
●640 x 480@30 (VGA)
●800 x 600@30 (SVGA)
●1024 x 768@30 (XGA)
●1280 x 768@30 (WXGA)
●1280 x 720@30 (HD720p)
●1920 x 1080@30 (HD1080p)
Audio standards
●64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729
Audio features
●High-quality 20-kHz mono
●Two acoustic echo cancellers
●Automatic Gain Control (AGC)
●Automatic noise reduction
●Active lip synchronization
Audio inputs
●One internal microphone
●One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone)
●One HDMI audio-in
Audio outputs
●One line out, mini-jack
●One HDMI, (digital main audio)
Dual stream
●H.239 (H.323) dual stream (CE8.2 or later)
●BFCP (SIP) dual stream
●Resolution up to 1080p5 (CE8.0 or later)
Multipoint support
●Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor)
Protocols
●H.323, SIP
●H.323 (CE8.2 or later)
Embedded encryption
●SIP/H.323 point-to-point (H.323 with CE8.2 or later)
●Standards-based: Advanced Encryption Standard (AES)
●Automatic key generation and exchange
●Supported in dual stream
IP network features
●DNS lookup for service configuration
●Differentiated Services (QoS)
●IP adaptive bandwidth management (including flow control)
●Dynamic playout and lip-sync buffering
●Date and Time support via NTP
●Packet Loss based downspeeding
●URI Dialing
●TCP/IP
●DHCP
●802.1x Network authentication
●802.1Q Virtual LAN
●802.1p (QoS and class of service [CoS])
●ClearPath
Call control
●Cisco Unified Communications Manager (CUCM)
◦Native registration with CUCM
◦Requires CUCM Version 8.6(2) or later with device pack for SX10 Quick Set
◦Basic CUCM provisioning
◦Firmware upgrade from CUCM
◦Cisco Discovery Protocol and DHCP option 150 support
◦Basic telephony features such as hold, resume, transfer, and corporate directory lookup
●Cisco Video Communication Server (VCS)
◦Native registration with VCS
●Cisco Webex
●Third-party H.323 Gatekeepers and standards-based SIP proxies
IPv6 network support
●Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
●Support for both static and autoconfiguration (stateless address autoconfiguration)
Security features
●Management through HTTPS and SSH
●IP administration password
●Menu administration password
●Disable IP services
●Network settings protection
Certificate management
●Certificate Authority Proxy Function (CAPF) support for additional security

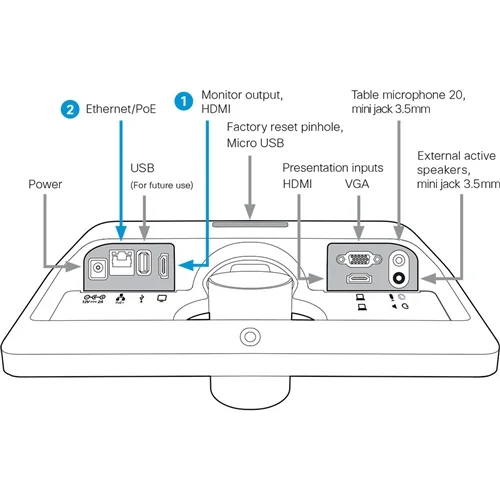

●Manufacturer-Installed Certificates (MIC)
●Locally Significant Certificates (LSC)
●X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network interfaces
●One PoE-enabled LAN connector (RJ-45) 100-Mbit
Other interfaces
●One USB port for future usage
●One Micro USB port for debugging
