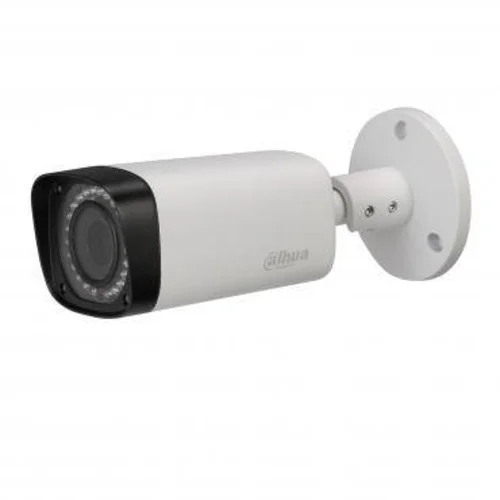

IP камера Dahua DH-IPC-HFW2200RP-VF уличная мини 2.0Мп, объектив 2.8-12мм, ИК до 30 метров, PoE

Model

DH-IPC-HFW2200R-VF

Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/10000s

Min. Illumination

0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

30m

Day/Night

Auto(ICR)/Color/B/W

Backlight Compensation

BLC / HLC / DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

2.7mm~12mm

Max Aperture

F1.4

Focus Control

Manual

Angle of View

H: 98°~ 30°

Lens Type

Manual/ Fixed Iris

Mount Type

Board-in Type

Video

Compression

H.264/ H.264H/ MJPEG

Resolution

1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/960P/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps

Audio

Compression

N/A

Interface

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility

ONVIF, CGI, PSIA

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V/PoE (802.3af)

Power Consumption

4.5W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Dimensions

72mm×80mm×212.8mm

Weight

0.65kg
